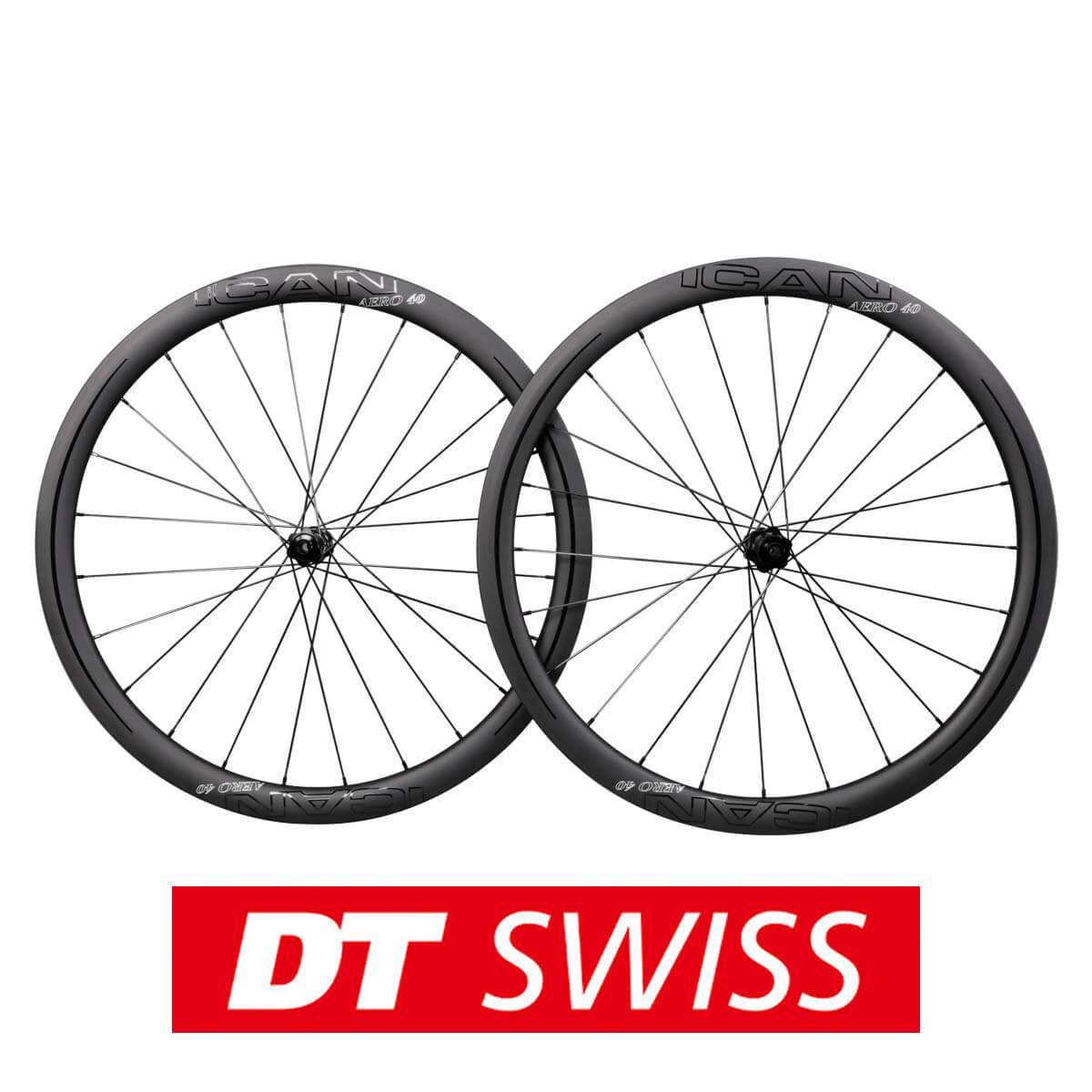

DT AERO 40 Disc
- Clincher tubeless ready
- AERO 40 Disc: 18.35mm internal rim width, 25mm external width
- AERO 40 Plus Disc: 23mm internal rim width, 27.9mm external width
- Branded DT hubs, centerlock
- Sapim CX-Ray spokes
- Sapim Secure Lock nipples
- Thru axles 12x100/12x142mm
- $1,019.00
- $1,019.00
- Unit price
- per
10 customers are viewing this product
Couldn't load pickup availability
Fast Delivery
15-Year Quality Assurance
2-year Warranty
40mm disc carbon fiber wheelset is a great aero wheel for those who also like to venture up the side of mountains. The main difference for AERO 40 disc wheels and AERO 40 Plus disc wheels is the inner width. AERO 40 plus disc wheels have 23mm inner width while AERO 40 disc wheels have 18.35mm.
The rims are tubeless ready profile. The wide shape allows your tire to fit in nicely with our rim, guiding the air past and stopping it from breaking up and causing drag. We have also tested these wheels to make sure they are just as strong and stiff.
Aero 40mm carbon wheels are available with DT240EXP and 350SL disc brake hubs. The 350SL is the more affordable option, and the 240EXP is the lighter option. They both feature DT Swiss' toolless design for when you need to service then and their Star Ratchet system for an almost instant drive connection. Both styles of the hub are available in Centerlock.
These wheels are built up with Sapim CX-Ray spokes. CX-Ray spokes are industry leading in their low weight and strong build qualities, the perfect mix for our wheelsets.
Specification
| Type | Carbon Disc Wheelset |
| Material | 100% Carbon Fiber Toray T700 & T800 |
| Size | 700C |
| Rim |
Drills: 24/24 Holes Inner Width: 18.35mm AERO 40 Plus Disc: Outer Width: 27.9mm Inner Width: 23mm |
| Depth | 40mm |
| Profile |
Clincher Tubeless Ready |
| Hub | DT240EXP/350SL Hubs (Centerlock) |
| Spoke | Sapim CX-Ray Spokes |
| Spoke Count | Front: 24 Rear: 24 |
| Spoke Pattern |
Front: 2-cross Rear: 2-cross
|
| Nipple | Alloy Color: Black |
| Cassette Compatibility |
Shimano 11speeds Sram XDR |
| Wheelset Weight |
AERO 40 Disc: Total: 1450+-20g Front: 657+-10g Rear: 793+-10g AERO 40 Plus Disc: Total: 1343+-20g (DT240EXP) Front: 617+-10g Rear: 726+-10g |
| Braking Surface | No Braking Surface |
| Recommended Tyre Size | 700 x 25-28mm |
| Thru Axle | 12*100mm/12*142mm |
| Rider Weight Limit | 110kg |
| Guarantee | 2 years |
| Free |
Rim Tape Valves |
| Packing Size | 81.5cm x 17cm x 65.5cm |
Recommended Tire Pressure
Below Chart is our recommended tire pressure,you can see more click here.
| STANDARD CLINCHER TIRE WITH INNER TUBE | TUBELESS TIRES | |
|---|---|---|
| ≤ 65 KG RIDER | 23mm - 95/100 psi 25mm - 90/95 psi 28mm - 85/90 psi |
23mm - 90/95 psi 25mm - 85/90 psi 28mm - 80/85 psi |
| 65 - 75 KG RIDER | 23mm - 100/105 psi 25mm - 95/100 psi 28mm - 90/95 psi |
23mm - 90/95 psi 25mm - 85/90 psi 28mm - 85/90 psi |
| 75 - 85 KG RIDER | 23mm - 101/106 psi 25mm - 96/101 psi 28mm - 91/96 psi |
23mm - 95/98 psi 25mm - 90/95 psi 28mm - 85/90 psi |
| 85 - 95 KG RIDER | 23mm - 104/109 psi 25mm - 99/104 psi 28mm - 94/100 psi |
23mm - 95/99 psi 25mm - 90/95 psi 28mm - 88/95 psi |
IMPORTANT - Please check, and never exceed, the maximum recommended tire pressures on the side of your tire.
Warranty Policy
Every ICAN frame and rim has a useful product life cycle. Each bike, frame and rim will have a unique identification number and warranty card. Complete the provided card and warranty form, and send them to us. Failure to use the provided warranty card will void your warranty. Save your dated receipt for proof of purchase.
Product Group:
Frame and Rim
Applies to all ICAN and Triaero brand bike frame, and FL Max series, AERO Series, and Alpha series rim.
Coverage:
2-year warranty from the date of purchase.
Conditions:
- If any manufacturing defect occurs within 30 days of the date of purchase, is obligated to replace the rim(s) and also pay for the shipping cost. If any manufacturing defect occurs after 31 days and up to 2 years, ICAN is obligated to replace the product(s). The product owner is responsible for shipping costs.
- If we no longer make the rim you purchased we’ll upgrade you to the newest equivalent model at no extra cost.
- The Warranty program is not transferable and only applies to the initial purchaser.
This warranty does not cover：
- Normal wear and tear (bearings, spokes, nipples, brake tracks, tires, inner tubes, pawls, freehub, seals, rim tape etc.)
- Products which have been incorrectly installed and/or adjusted.
- Issues brought about by neglect or poor maintenance.
- Surface finish and cosmetic treatments (anodizing, decals, etc.)
- Crash damage.
- Consequential or incidental damages (where applicable)
- Products purchased “second-hand”, “used”, “as-is”, or expressly “without warranty”
- Counterfeit products
- Unauthorized modification or alteration, including without limitation, any repair performed by anyone other than ICAN or an ICAN-authorized servicer, or outside of the recommendations of ICAN Customer Service
Tips:Please contact the official support of ICAN at the first time when you find a quality problem. Please do not repair our products privately, otherwise we will not bear any warranty.
The following will void your warranty
- Misuse (Jumping, trick riding, etc.)
- Modification of wheels
- Tire pressure exceeding 140psi
- Improper assembly
- Installation of parts or accessories not originally intended for, or not compatible with the wheelsets sold.
- Use of brake pads not designed for carbon wheels
More details can be known from "Warranty & Return".
