We have recommended the best combination for you, if you are looking for the frame and wheelsets to build your full bike, you can buy them together.
You will get more affordable price. You only need to spend the cost of a big brand frame, you can get the frame and wheelset together with big brand

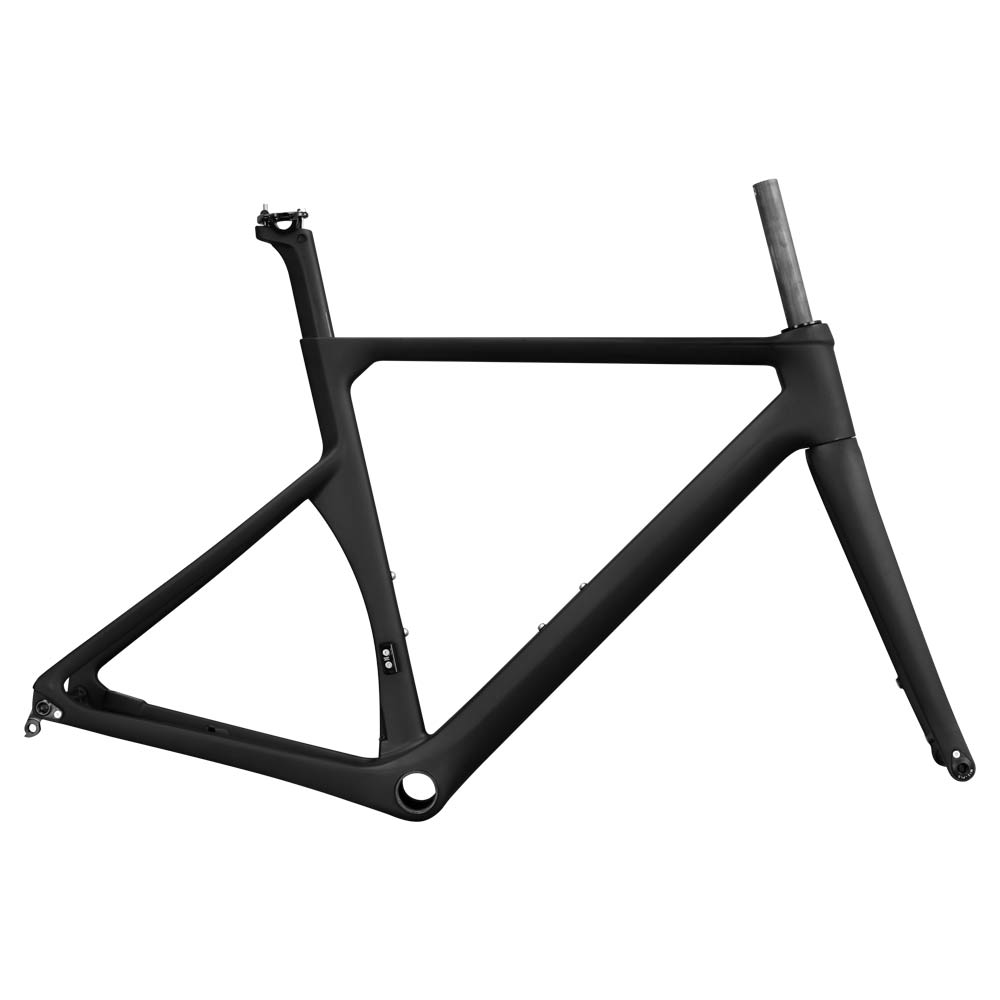

ICAN A22 FRAME
| Type | New Aero Carbon Road Disc Brake Frame |
| Material | Toray T700 Carbon |
| Size | 54/57cm |
| Fork | AO22 specify carbon fork |
| Headtube | Straight 1 1/2" head tube |
| Weight | 54cm 1115g 57cm 1248g |
| Seatpost |
Adjustable Seatpost |
| Bottom bracket | BB86 |
| Max tire clearance |
700*28c 700x28c（maxxis tire can be supported） |
| Brake mount type |
Flat mount Disc brake 140mm |
| Dropout | Front 12*100mm thru-axle Rear 12*142mm thru-axle |
| Groupset | Recommended install electronic shifting groupset |
| Handlebar&stem | Compatible with ICAN handlebar HBA22 |
|
Test Standard |
ISO4210 |
| Type | Carbon Alpha Disc Wheelset |
| Rim | Alpha Disc |
| Material | Carbon Fiber Toray T700 & T800 |
| Size | 700C |
| Rim Wide |
40mm: External: 25mm Inner : 18.35mm 50mm: External: 25mm Inner : 18.35mm 38mm: External: 27.3mm Inner : 21mm 52mm: External: 27.3mm Inner : 21mm 40mm plus: External: 27.8mm Inner : 23mm 50mm plus: External: 27.8mm Inner : 23mm |
| Depth | 40/50/38/52mm |
| Profile | Clincher Tubeless Ready |
| Hub | ICAN D21 Hub (Centerlock, 12x100/12x142mm) |
| Spoke | Pillar SA1423 Spokes |
| Spoke Count | Front: 24 Rear: 24 |
| Spoke Pattern |
Front: 2-cross Rear: 2-cross
|
| Nipple | Alloy Color: Black |
| Cassette Compatibility | Shimano 10/11speeds |
| Wheelset Weight |
Alpha 40 Pro Disc：Total: 1564g Front: 716g Rear: 828g Alpha 50 Pro Disc：Total: 1597g Front: 734g Rear: 863g Alpha 38 Disc：Total: 1480g Front: 682g Rear: 798g Alpha 52 Disc：Total: 1570g Front: 726g Rear: 844g Alpha 40 Plus Disc: Total: 1520g Front: 700g Rear: 820g Alpha 50 Plus Disc: Total: 1555g Front: 722g Rear: 833g |
| Braking Surface | No Braking Surface |
| Recommended Tyre Size | 700 x 25-30mm |
| Rider Weight Limit | 110kg |
| Guarantee | 2 years |
| Free |
Rim Rape Valves |
| Packing Size | 81.5cm x 17cm x 65.5cm |
Warranty Policy
Every ICAN frame and rim has a useful product life cycle. Each bike, frame and rim will have a unique identification number and warranty card. Complete the provided card and warranty form, and send them to us. Failure to use the provided warranty card will void your warranty. Save your dated receipt for proof of purchase.
Product Group:
Frame and Rim
Applies to all ICAN and Triaero brand bike frame, and FL Max series, AERO Series, and Alpha series rim.
Coverage:
2-year warranty from the date of purchase.
Conditions:
- If any manufacturing defect occurs within 30 days of the date of purchase, is obligated to replace the rim(s) and also pay for the shipping cost. If any manufacturing defect occurs after 31 days and up to 2 years, ICAN is obligated to replace the product(s). The product owner is responsible for shipping costs.
- If we no longer make the rim you purchased we’ll upgrade you to the newest equivalent model at no extra cost.
- The Warranty program is not transferable and only applies to the initial purchaser.
This warranty does not cover：
- Normal wear and tear (bearings, spokes, nipples, brake tracks, tires, inner tubes, pawls, freehub, seals, rim tape etc.)
- Products which have been incorrectly installed and/or adjusted.
- Issues brought about by neglect or poor maintenance.
- Surface finish and cosmetic treatments (anodizing, decals, etc.)
- Crash damage.
- Consequential or incidental damages (where applicable)
- Products purchased “second-hand”, “used”, “as-is”, or expressly “without warranty”
- Counterfeit products
- Unauthorized modification or alteration, including without limitation, any repair performed by anyone other than ICAN or an ICAN-authorized servicer, or outside of the recommendations of ICAN Customer Service
Tips:Please contact the official support of ICAN at the first time when you find a quality problem. Please do not repair our products privately, otherwise we will not bear any warranty.
The following will void your warranty
- Misuse (Jumping, trick riding, etc.)
- Modification of wheels
- Tire pressure exceeding 140psi
- Improper assembly
- Installation of parts or accessories not originally intended for, or not compatible with the wheelsets sold.
- Use of brake pads not designed for carbon wheels
More details can be known from "Warranty & Return".
